boss vocal pedal ve-20 Boss VE-22 Vocal Performer Effects Processor

ake charge of your vocal sound with the VE-22, a portable multi-effects toolbox specially designed for singers. Perform with a diverse library of high-quality BOSS processing, from basic studio enhancement to dramatic voice-changing effects. Expand your range with real-time harmonies. And get creative with the free-flowing interface and versatile features for practice, recording, and online streaming. With the VE-22 in your chain, you’re primed and ready to deliver memorable, high-impact vocal performances everywhere you sing.

• Advanced multi-effects processor with a versatile range of sound processing tools for vocalists
• Enhance your sound with essential effects like compressor, EQ, delay, echo, reverb, and more
• Create processed sounds with lo-fi, distortion, radio, ring mod, and other specialty effects
• Automatic pitch correction for soft fine-tuning or aggressive electronic tones
• Harmony and doubling functions for creating impressive ensemble vocal sounds
• Dial in great sounds quickly with the intuitive interface
• High-visibility color LCD and multi-function knobs for fast parameter access
• 50 ready-to-go pro presets and 99 memories for storing your own setups
• XLR mic input with phantom power and mic sensitivity control
• Two XLR outputs that can be configured for stereo, dual mono, or wet/dry mix + dry operation
• USB-C® for recording and audio playback via a computer or mobile device*
• Aux input for singing along with favorite songs and backing tracks
• Onboard looper for practice, performance, and developing ideas
• Three customizable switches with large surfaces designed for foot or hand operation
• Jack for an expression pedal or up to two external footswitches
• Powered via four AA batteries or an optional AC adaptor



• Specs:

Sample Rate48 kHzAD Conversion24 bits + AF method
AF method (Adaptive Focus method) is a proprietary method from Roland & BOSS that vastly improves the signal-to-noise (SN) ratio of the AD and DA converters.DA Conversion32 bitsProcessing32-bit floating pointEffects39 typesMemories99 (User) + 50 (Preset)Phrase Loop37 sec.Nominal Input LevelINPUT: -40 dBu (Adjustable)
AUX IN: -20 dBuMaximum Input LevelINPUT: 0 dBu
AUX IN: 0 dBuInput ImpedanceINPUT: 4 k ohms
AUX IN: 27 k ohmsNominal Output LevelOUTPUT L/MONO, R: -40 dBu
PHONES/LINE OUT: -10 dBuOutput ImpedanceOUTPUT L/MONO, R: 600 ohms
PHONES/LINE OUT: 47 ohmsRecommended Load ImpedanceOUTPUT L/MONO, R: 600 ohms or greater
PHONES/LINE OUT: 47 ohms or greaterDisplayGraphic color LCD 320 x 240 dotsControlsHARMONY switch
DOWN switch
UP switch
MENU button
EXIT button
PHONES/LINE knob
MEMORY knob
HARMONY knob
EFFECT knob
ECHO knob
MIC SENS knob
PHANTOM switch

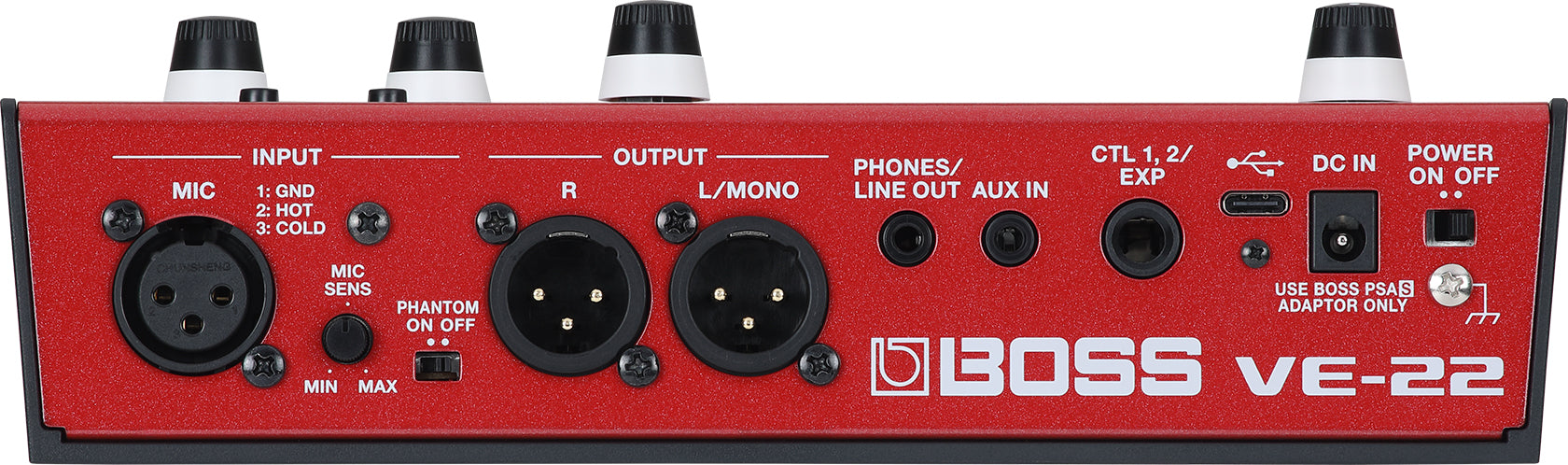

POWER switchConnectorsINPUT connector: XLR type, balanced, phantom power (DC 48 V, 10 mA Max)
OUTPUT L/MONO, R connectors: XLR type
PHONES/LINE OUT jack: Stereo miniature phone type
AUX IN jack: Stereo miniature phone type
CTL1,2 / EXP jack: 1/4-inch TRS phone type
USB COMPUTER port: USB Type-C(R)
DC IN jackPower SupplyAlkaline battery (AA, LR6) x 4
or
AC adaptor (PSA-S series: sold separately)Current Draw260 mA (with phantom power)
180 mA (without phantom power)Expected battery life under continuous useAlkaline battery: Approximately 6 hours (with phantom power)
Alkaline battery: Approximately 9 hours (without phantom power)
* This can vary depending on the specifications of the batteries, capacity of the batteries, and the conditions of use.AccessoriesSTARTUP GUIDE
Alkaline battery (AA, LR6) x 4
Leaflet “USING THE UNIT SAFELY”Options (sold separately)AC adaptor: PSA-S series
Footswitch: FS-5U, FS-6, FS-7
Expression Pedal: EV-30, FV-500L, FV-500H, Roland EV-5
Carrying Bag: CB-VE22Size and WeightWidth218 mm
8-5/8 inchesDepth143 mm
5-11/16 inchesHeight64 mm
2-9/16 inchesWeight (including battery)910 g
2 lb 0.1 0z
